TOWERS

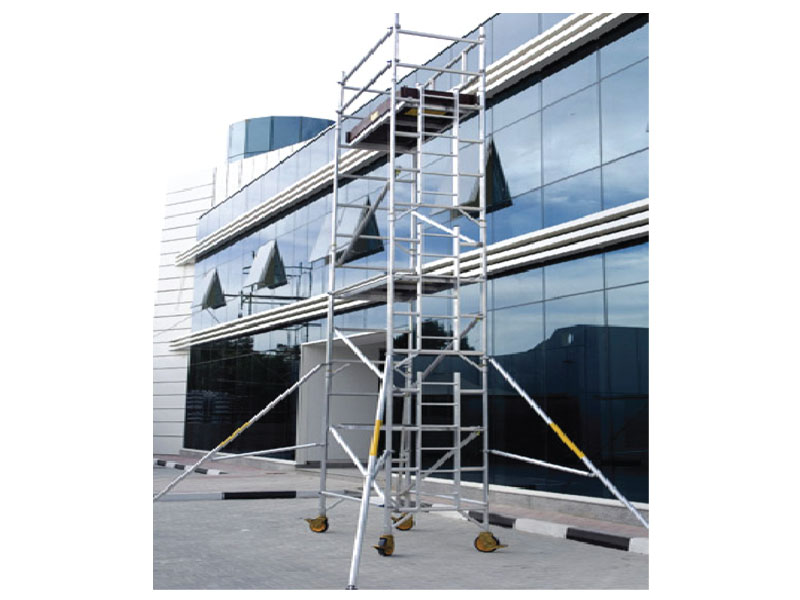

Single Width Mobile Tower

This tower are fast and easy to erect and ideal for maintenance work indoor and outdoor. If there is narrow space for placing a mobile tower, this mobile tower offers an excellent solution with its 90cm wide frames. The maximum working height for interior and exterior work is 10M. It is also equipped with construction manual and labels. The maximum load per platform is 225kgs and for the entire tower is 600kgs including tower self-weight.

Specification
  • Width available : 0.78M

  • Mainframe Height : 1.5M and 2M

  • Length available : 1.58M, 1.78M, 2.08M and 2.55M

Technical Features
  • Adjustable leg up to 30cm

  • Working Platform ( 139 x 255 )

  • Capacity – 200kg / sq M

  • Rung distance – 50 cm

  • Aluminium alloy – 6061 T6

  • Tube Thickness – 2.5mm

  • Platform – anti - slip Plywood with aluminium Frame

  • Number of rungs in a ladder : 7 ladder in each 2M frame.

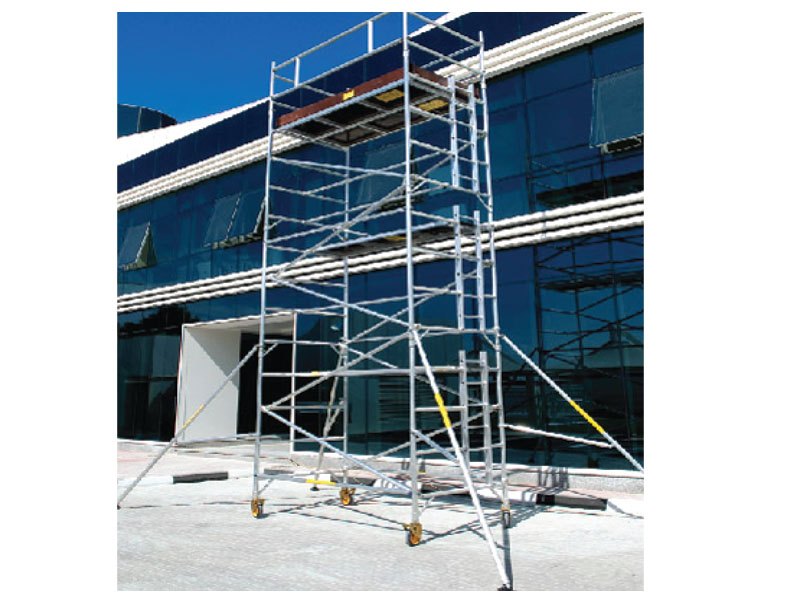

Double Width Mobile Tower

It is most popular mobile scaffolding tower, available in 1.39M wide frames.This system has numerous applications for both interior and exterior use. The maximum working height for interior work is 14M and exterior work is 10M. Equal length braces, stabilizers, platform, wheel legs and toe board can be interchange between single width mobile scaffolding tower. It is also equipped with construction manual and labels. The maximum load per platform is 250kgs and for the entire tower is 750kgs including tower self-weight.

Specification
  • Width available : 1.20M, 1.39M, 1.60M and 2.00M

  • Mainframe Height : 1.5M, 2M

  • Length available : 1.78M, 2.08M, 2.55M and 2.98M

Technical Features
  • Adjustable leg up to 30cm

  • Working platform ( 139 x 255 ) cm
