BOARDS

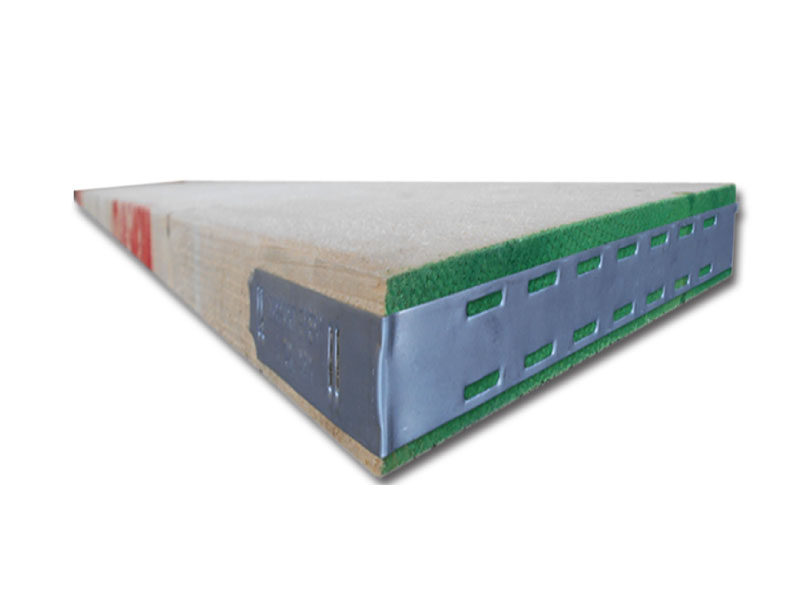

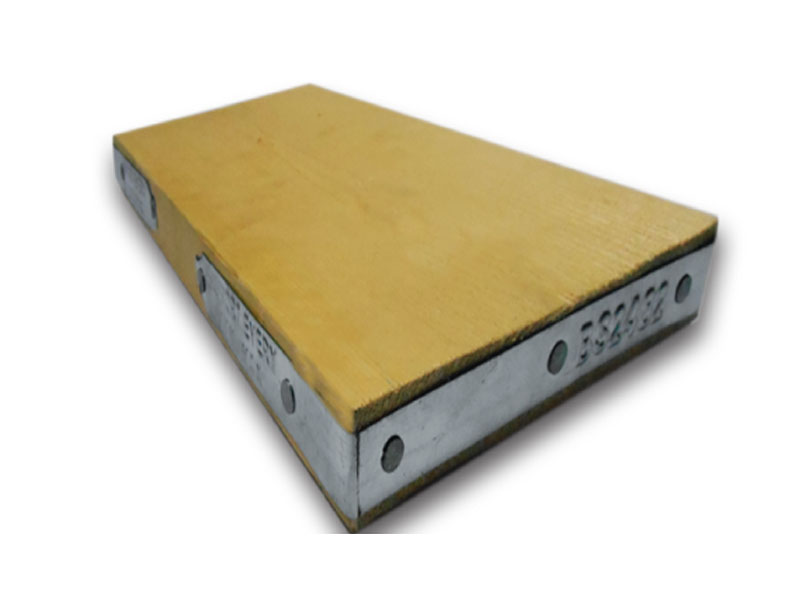

BS Scaffold Wooden Board

All boards are end bended with steel end bands according to British standards BS 2482 which is the only valid standard for this product.

The British standards BS 2482 specifies requirement for wooden board with width of 225mm and thickness of 38mm. It covers board sizing, board construction and timber quality as well as grading for which it specifies:

For 38mm thickness Scaffold Wooden Boards as follows :
  • 1.2M support centre – a grade that is suitable for support at centre up to 1.2Mtr.

  • We supply boards with both bended at edge of each band to indicate to avoid crack and ensure strength.

  • The word “Support every 1.5M or 1.2M max” embossed on each band to indicate suitable span to be used.

  • Standard size: 38mm ( Thickness ) x 25mm ( Width ). Length and thickness tolerance as per standard.

  • Shorter lengths are also available subject to order quality.

  • Wood used : Kempas,Keruing& Hardwood

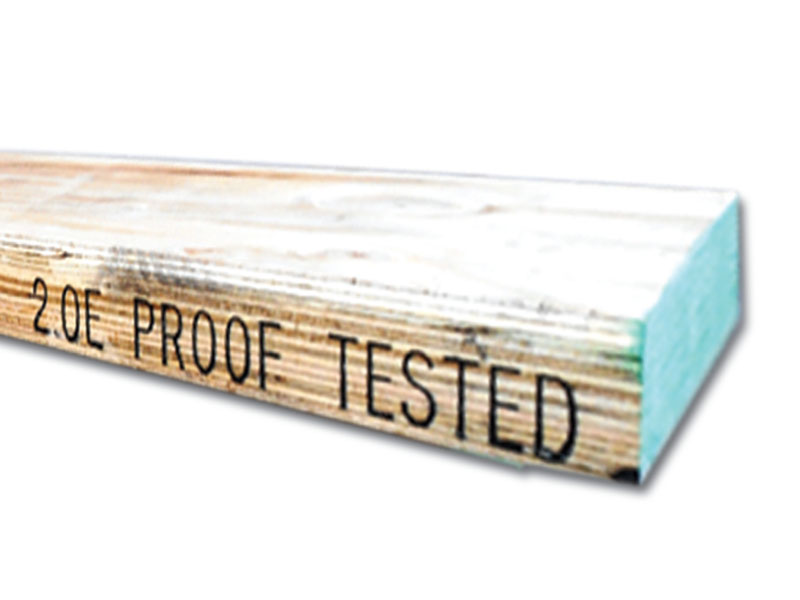

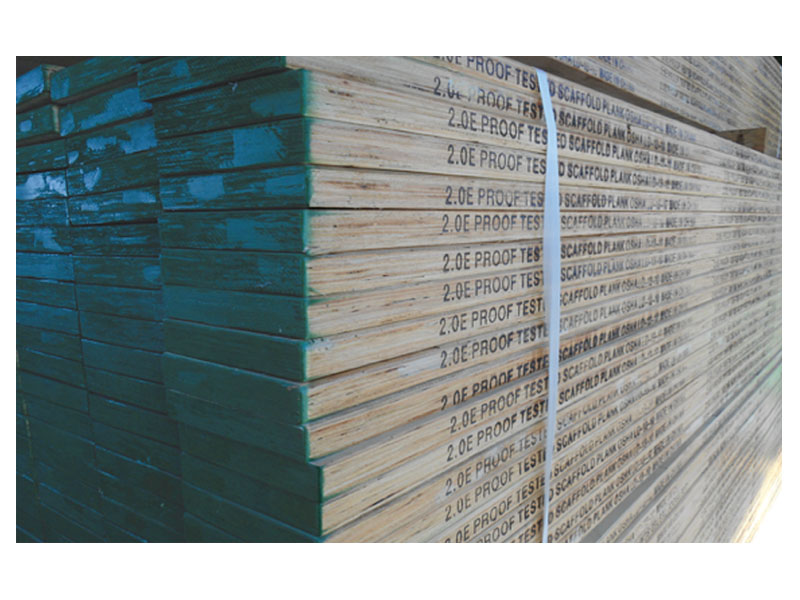

OSHA Proof Tested LVL Planks

Meets strengths requirement by US Department of Labour – Occupational Safety and Health administration

Specification
  • The structural uniformity of LVL makes it the perfect solution for a safe and light weight scaffold board.

  • Each board is made from many layers of this veneer which increases the reliability and strength of the product.

  • Standard size: 38mm ( Thickness ) x 225mm ( Width ) x 3.9M ( Length )

  • Shorter lengths are also available subject to order quantity

  • Glue : WBP ( Phenol Formaldehyde adhesive ) Environment Friendly & Waterproof

  • Wood Used: Radicate Pine / Masson Pine

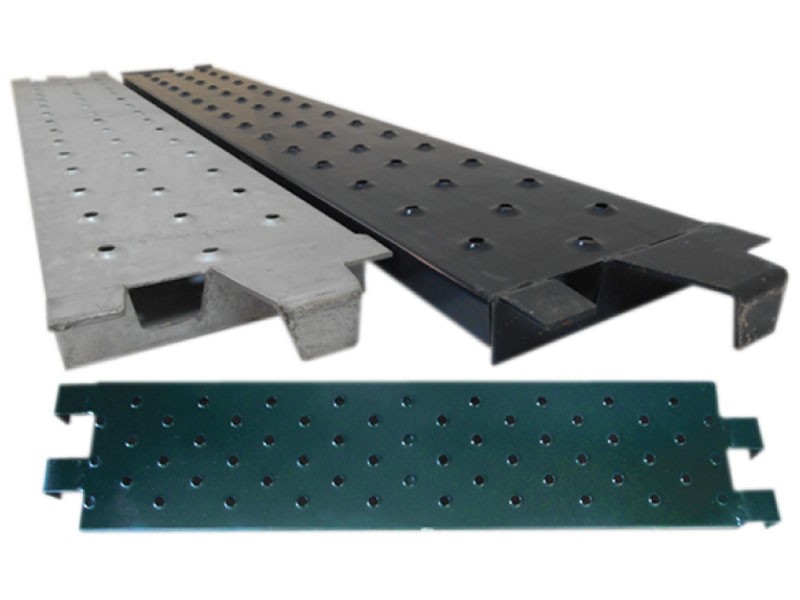

Scaffold Steel Board

Scaffold Metal Board is now used as replacement of timber boards as temporary access platform. It boasts high load carrying capacity and triples the life span from a timber for a competitive price.

All steel boards comply t BS EN 12811-1 and gone through stringent technical test as well as many international third party recognition. It is recommended to use Board Retaining Coupler ( BRC ) / Limpet Clamp to secure the steel board.

Also available with hook or without hook ( plain end )

Specification
  • Height : 38mm & 45mm

  • Width : 210mm & 225mm

  • Length : 1.0m to 4.0m ( without hook type ) 1.2m to 2.5m ( with hook type )

  • Thickness : 1.2mm / 1.5mm / 1.8mm / 2.0mm

  • Standard : BS EN 12811 - 1 / AS 1577 – 1993

  • Finishing : Pre Galvanized / Painted / Hot dipped Galvanized

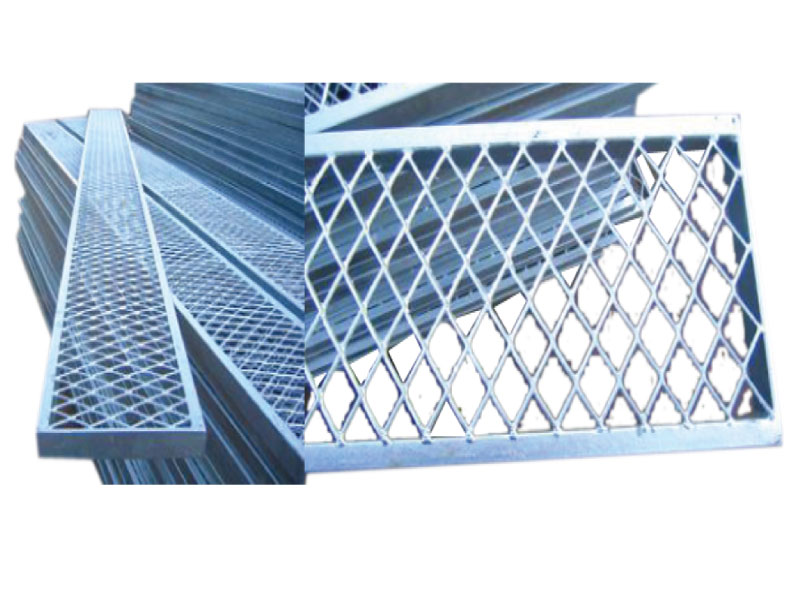

Expanded Steel Board

Expanded Steel board are specially designed to be used in shipyard projects. These boards are best for blasting works which does not allow accumulation of garnets debris unlike wooden and steel board which allow the gar nets debris to accumulate on surface which cause safety hazard.

Specification
  • Size : 38mm ( H x 225 ( W )) x Length

  • Finishing : Painted / Hot Dipped Galvanized

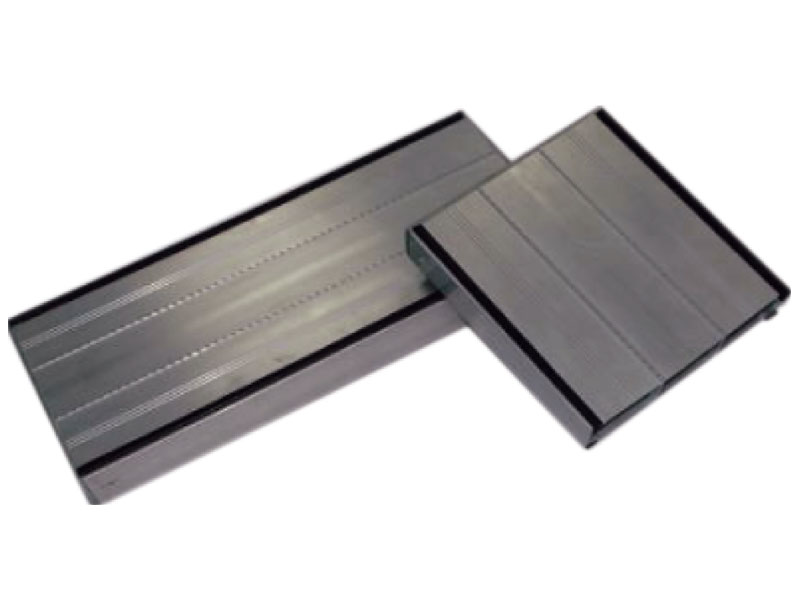

Aluminium Board

Scaffold Aluminium Board are used as a temporary access platform. It boasts high load carrying capacity and triples the life span of a timber board. It is fully made of aluminium and weighs only 3.8kg/m. It comes in various sizes from 1m to 4m length. The dimension of this aluminium board is 45mm (H) x 225mm (W) Also available with hook or without hook ( plain end )

Specification
  • Height : 38mm & 45mm

  • Width : 210mm & 225mm

  • Length : 1.0m to 4.0m ( without hook type ) 1.2m to 2.5m ( with hook type )

  • Thickness : 1.2mm / 1.5mm / 1.8mm / 2.0mm

  • Standard : BS EN 12811 - 1 / AS 1577 – 1993

  • Finishing : Pre Galvanized / Painted / Hot dipped Galvanized
